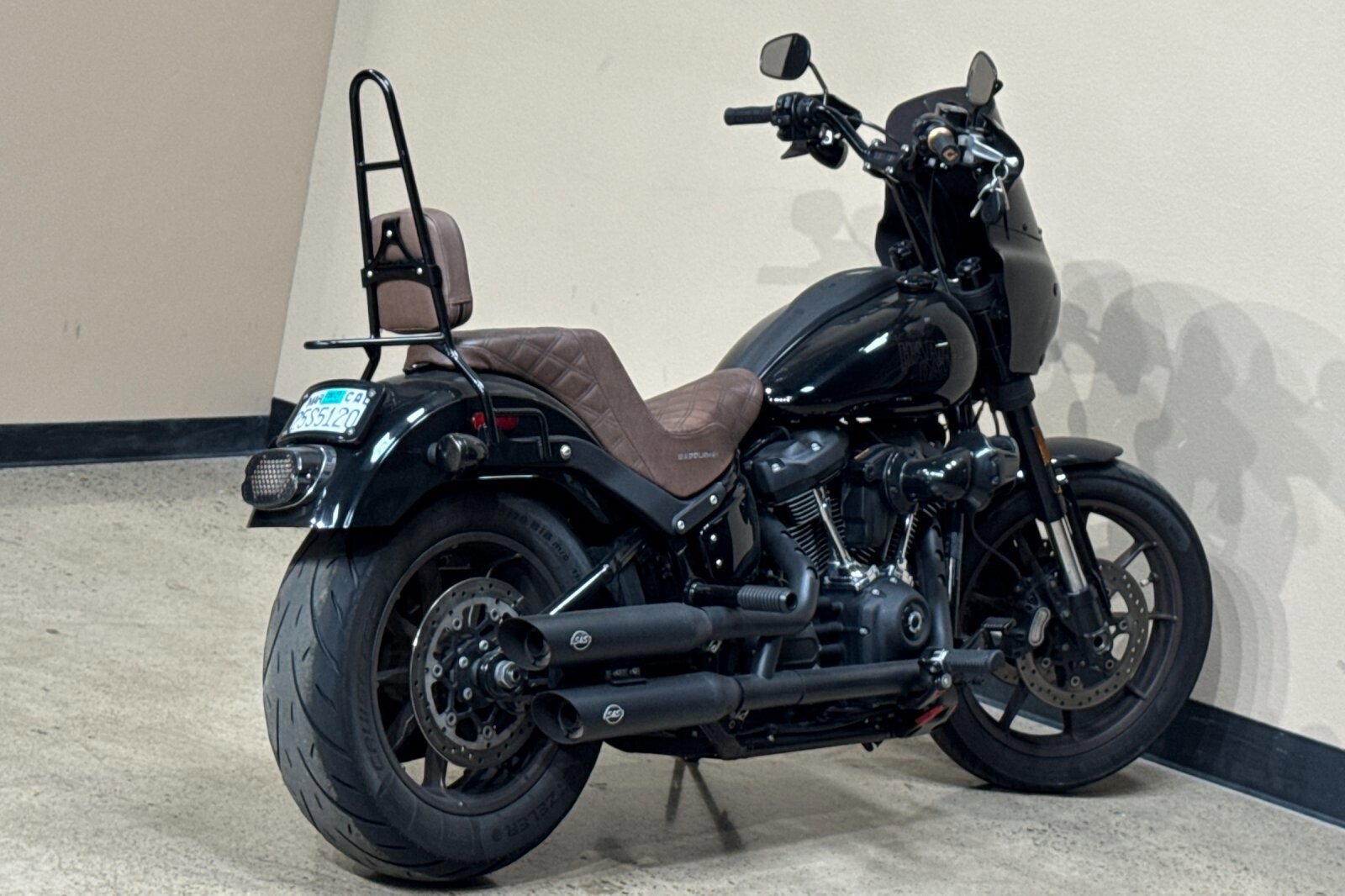

‹ Home › Inventory › FXLRS 2022 Low Rider® S

Low Rider™ S 117 model is an aggressive performance kingpin designed for the rider seeking unapologetic power, the rider willing to push their bike to the limit. The Milwaukee-Eight™ 117 powertrain gives the Low Rider™ S 117 motorcycle owner instant bragging rights. Premium suspension enhances the riding experience. Straight from the factory this bike bundles the big attitude of West Coast style and unrelenting performance previously only attainable with significant investment in accessories – a real value proposition for some customers. This leaves the door wide open for further customization.

Specifications

Dimensions

add remove
- Length:

  93.1 in
- Seat height, unladen:

  28.0 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  650 lbs
- Weight, in running order:

  679 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  124.6 ft-lb
- Engine torque (RPM):

  3,500
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
