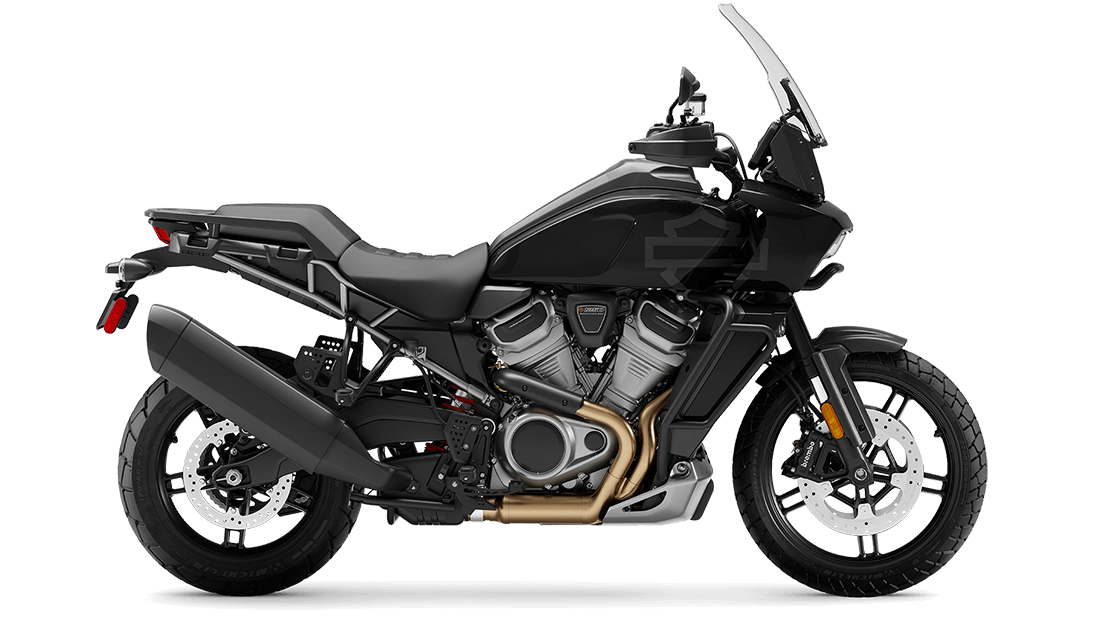

‹ Home › Inventory › Harley-Davidson® Pan America™ 1250 Special 2022

The Pan America™ 1250 Special motorcycle is our premier two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.

Specifications

Dimensions

add remove
- Length:

  89.4 in
- Ground clearance:

  6.9 in
- Rake (steering head):

  25
- Trail:

  4.3 in
- Wheelbase:

  62.4 in
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  170/60R17 72V
- Fuel Capacity:

  5.6 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  534 lbs
- Weight, in running order:

  258 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  93.7 ft-lb
- Engine torque (RPM):

  6,750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46.1 mpg (5.1 l/100km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Wheels, optional style type:

  Annodized aluminum tubeless laced
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Electric

add remove
- Lights (as per country regulation), indicator:

  LED Bullet Turn Signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
