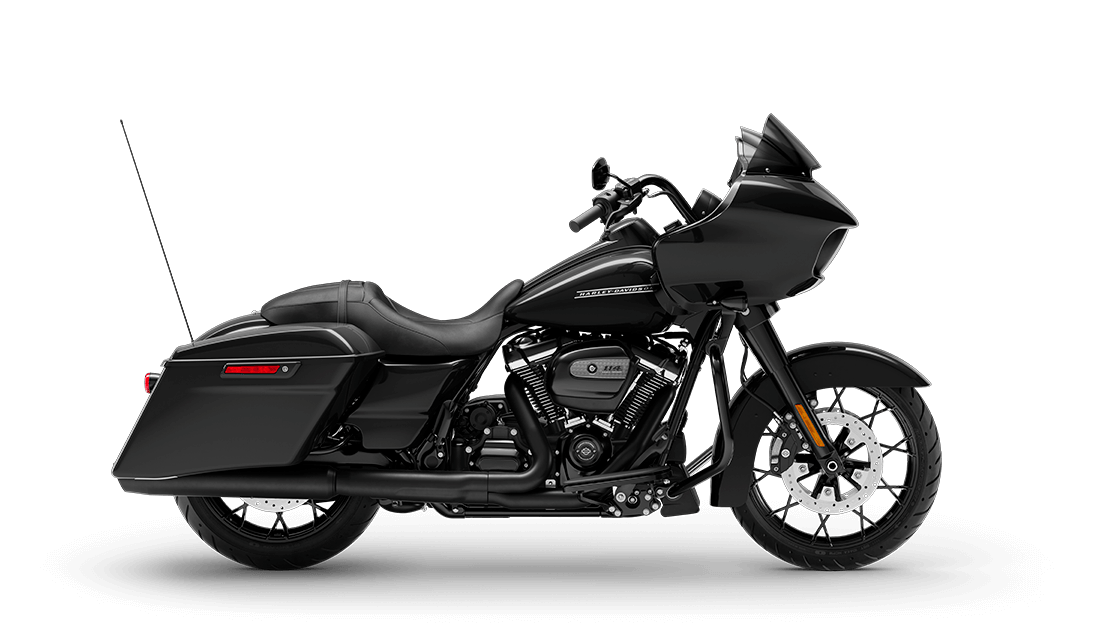

‹ Home › Inventory › FLTRXS 2020 Road Glide® Special

The blacked-out Milwaukee-Eight® 114 engine set in the belly of the Road Glide® Special takes the custom touring look to a darker place. Its new Prodigy™ wheels are outfitted with optional Reflex™ Defensive Rider Systems that connect electronically with your bike to ebb and flow through any type of weather. Premium features like the roomy, stretched saddlebags and a BOOM!™ Box GTS infotainment system with H-D™ Connect give you long-touring, head-clearing comfort without sacrificing attitude.

Specifications

Dimensions

add remove
- Length:

  95.7 in
- Ground clearance:

  5.1 in
- Rake (steering head):

  26
- Trail:

  6.8 in
- Wheelbase:

  1,625 mm
- Tires, front specifications:

  130/60B19 61H
- Tires, rear specifications:

  180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5.2 qt.
- Weight, as shipped:

  818 lbs
- Weight, in running order:

  853 lb
- Luggage capacity – volume:

  2.7 cu ft (0.071 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight™ 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Black, 2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  120.2 ft-lb
- Horsepower:

  89 HP / x66 Kw @ 5020 rpm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  31
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.02 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  142 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, front type:

  Gloss Black Prodigy
- Wheels, rear type:

  Gloss Black Prodigy
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, speakers, accessory, security system, gear indication, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  2
- Speaker size:

  6.5 inch BOOM standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Text-to-Speech (TTS) languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
